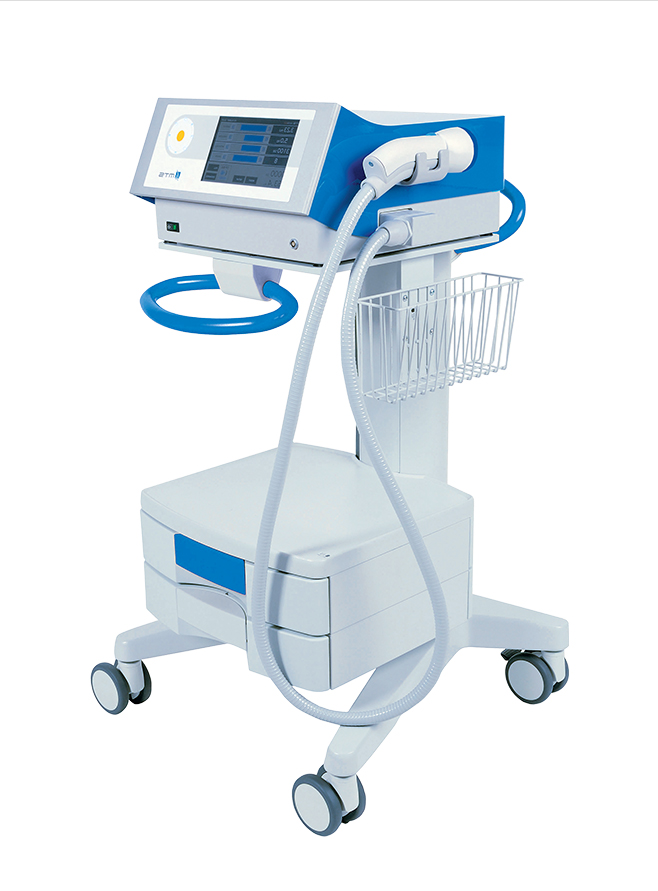

독일 MTS Medical UG의 최첨단 ESWT


20년간 축적된 MTS Medical의 기술력을집약시킨

최첨단 Focus type 체외충격파시스템으로 3가지

어플리케이터를 이용하여 광범위한 골격계 질환에 대하여

짧은시간내 치료효과를 나타낼 수 있습니다.


Features

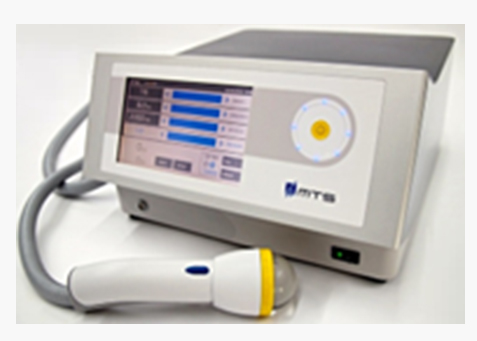

사용자 중심의 UI


직관적인 UI와 터치스크린을 통한 간단한 조작법은 시술시간을

단축시키고 사용자가 치료에 집중할 수 있도록 도와줍니다.





Electrohydraulic Spark Gap


0.01 ~ 0.27mJ/mm2 의 에너지 유출농도(EFD)

최대 6.15mJ 의 총 유효 에너지량(T.E.E)

고압의 전기스파크에서 발생한 수압력으로 환부에 충격파를 전달하는 Electrohydraulic 방식은 주변조직에 영향을 주지않는 EFD 범위 내에서 안정적인 에너지 발생과 높은 총 유효에너지량으로 안전하고 효율적인 치료가 이루어질 수 있도록 합니다.

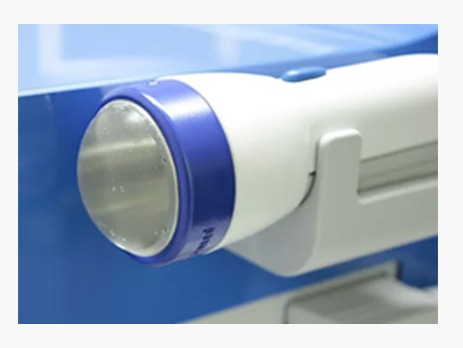

간단한 Depth 조절


터치스크린을 통한 Depth 조절이 가능하여

치료중 Applicator 교체 등이 불필요합니다.

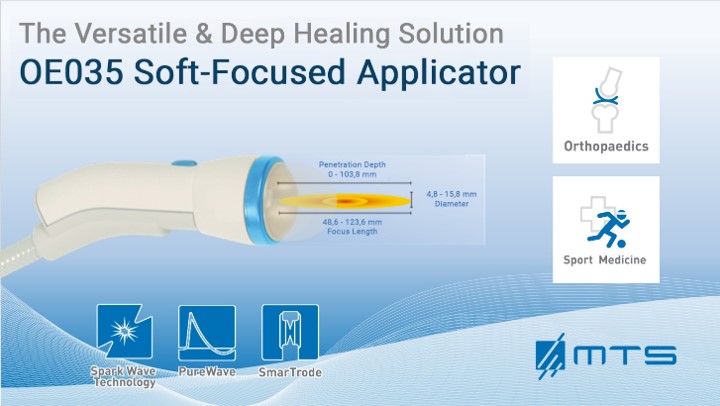

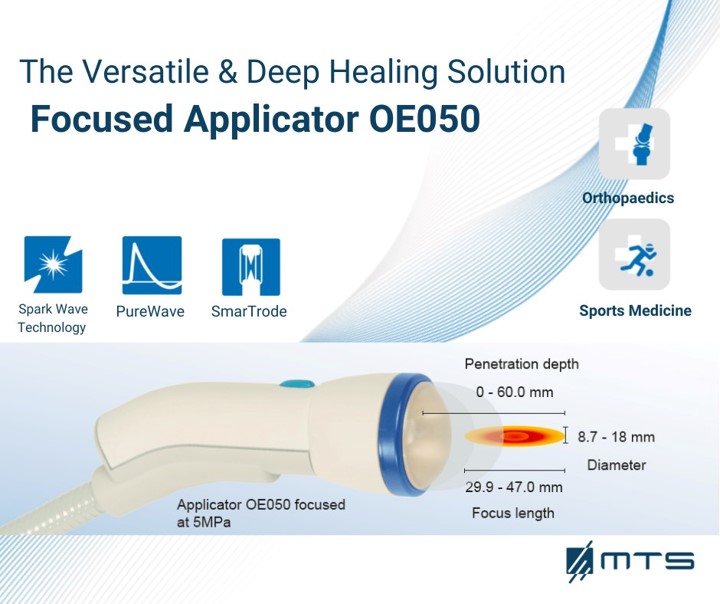

Applicators





Indication에 따른 특화된 Applicator


광범위한 적응증의 효율적인 치료를 위해 3가지 Applicator를 선택적으로 사용할 수 있습니다.

Focal Zone

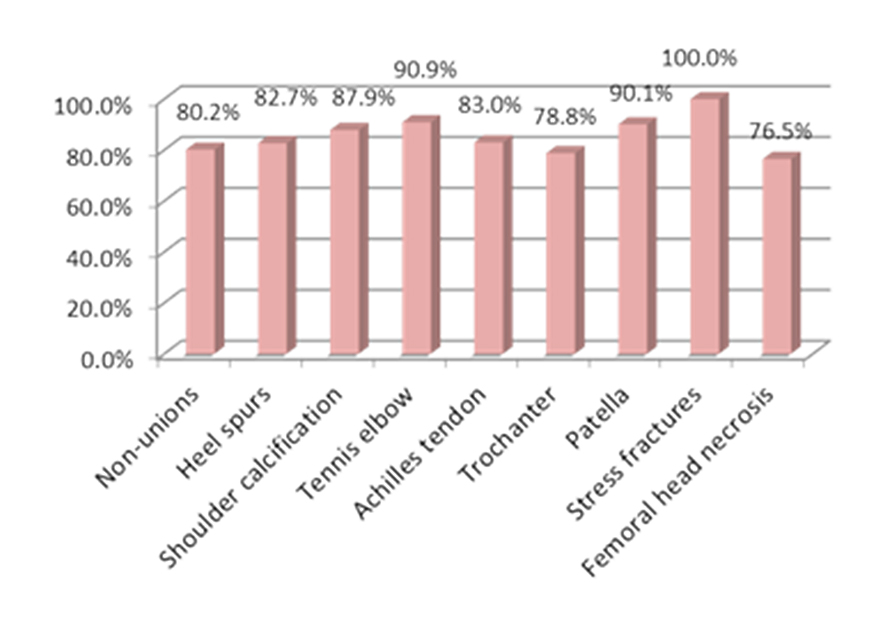

Clinical Report


- Elster et al. Extracorporeal shock wave therapy for nonunion of the tibia

- Wang et al. Long-term results of extracorporeal shockwave treatment for plantar fasciitis.

- Hsu et al. Extracorporeal shock wave therapy for calcifying tendinitis of the shoulder

- Wang et al. Shock wave therapy for patients with lateral epicondylitis of the elbow: a one- to two-year follow-up study

- Furia et al., High-energy extracorporeal shock wave therapy as a treatment for insertional achilles tendinopathy

- Furia et al. Low-energy extracorporeal shock wave therapy as a treatment for greater trochanteric pain syndrome

- Wang et al. Extracorporeal shockwave for chronic patellar tendinopathy

- Moretti et al. Shock waves in the treatment of stress fractures

- Wang et al. Functional outcomes of bilateral hip necrosis: total hip arthroplasty versus extracorporeal shockwave therapy.


Indication for Use


① 석회화 어깨 건염 (Calcified shoulder tendinosis)
② 어깨 건염 (Shoulder tendinosis)
③ 족저건막염 (Plantar fasciitis)
④ 테니스 엘보 (Epicondylitis radialis, Tennis Elbow)
⑤ 골프 엘보 (Epicondylitis ulnaris, Golfer Elbow)
⑥ 슬개골건염 (Patellar tip syndrome)
⑦ 아킬레스건염 (Achilodynai)
⑧ 대퇴골두 무혈성 괴사 (Femoral head necrosis. AVN)
⑨ 부접합 및 지연골절 (Non-union/Delay union)
⑩ 오십견 (Frozen shoulder)
⑪ 관절의 골연골염
⑫ 스포츠 관절통, 힘줄 및 인대염증 등
⑬ 당뇨성 괴사 및 기타 괴사 치료 (Diabetic ulcer & other ulcer)
⑭ 화상치료 (Burn injury treatment)


Specifications




Dimensions : 21.8 * 40 * 45.9 (cm)

Power Supply : AC 100 ~ 240V, 50 ~ 60Hz

Weight : 16.5kg

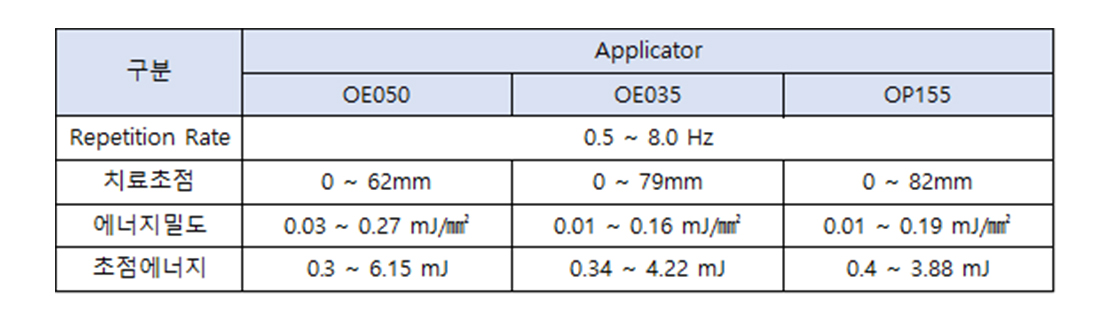

Applicator
